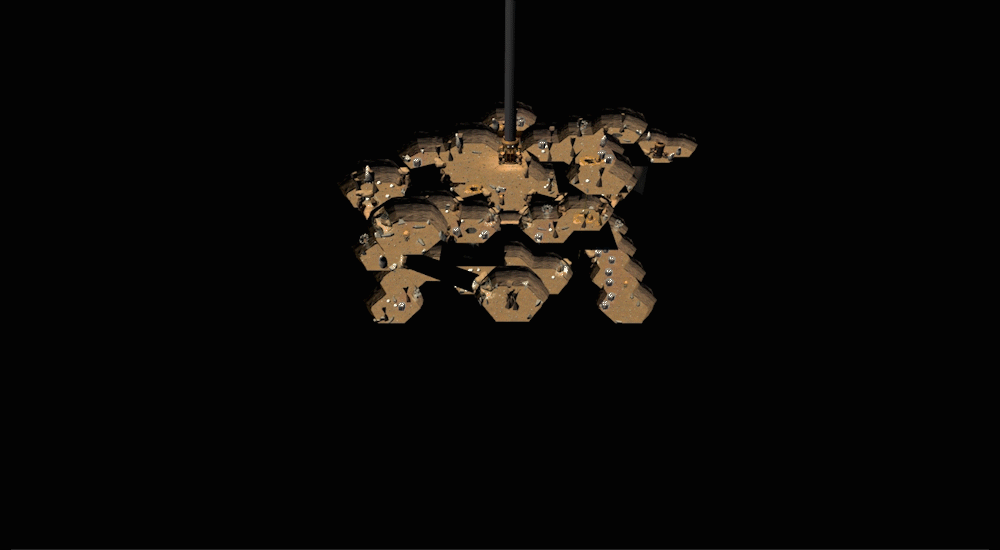

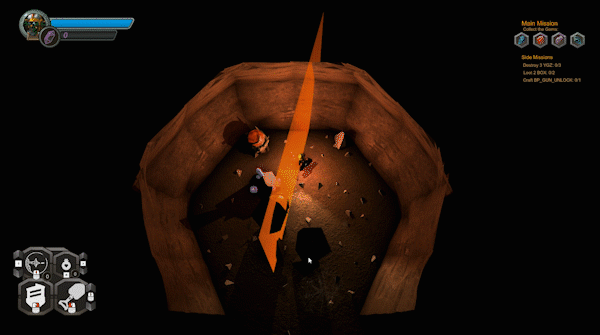

Made this editor tool for a game about a goblin miner, that keeps digging and digging deep beneath to find minerals and defend against giant spiders and worms.
I used a hexagonal grid with a graph-based system to detect if all caves are reachable by the player.

Algorithm process:

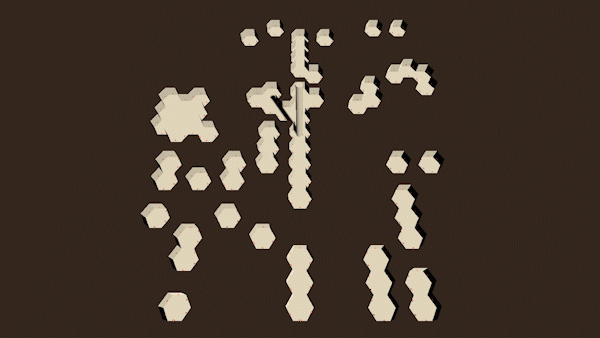

• Random positions in 2D hexagon grid.
• 3D Hexagonal Caves instantiation, walls cutting.

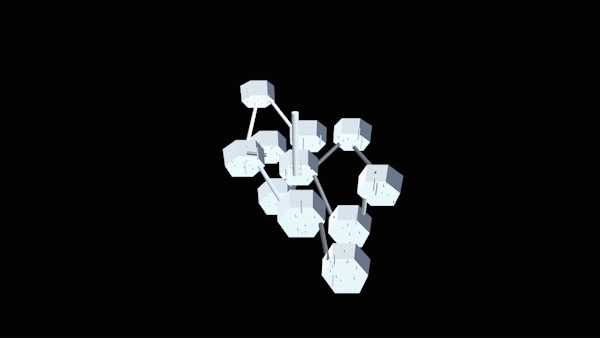

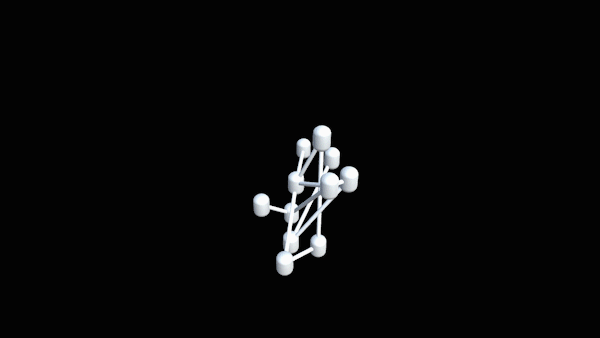

• Graph creation based on hexs (nodes).

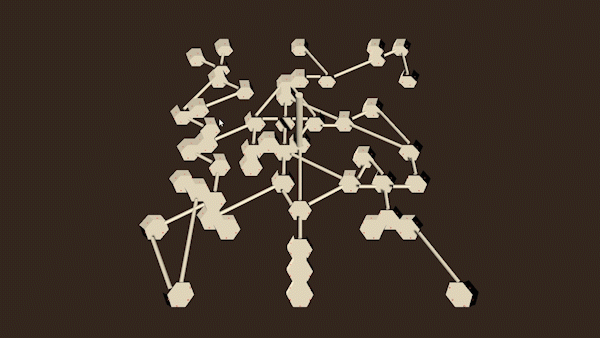

• Edges creation (tunnels) based on walls normals and checking intersections.
• Breadth First Search to check if the level is explorable.
• Tunnels instantiation according to edges.

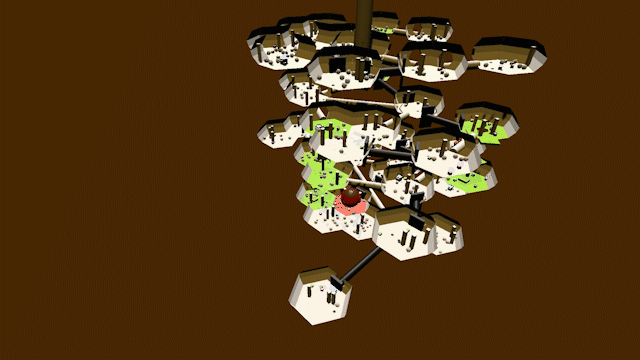

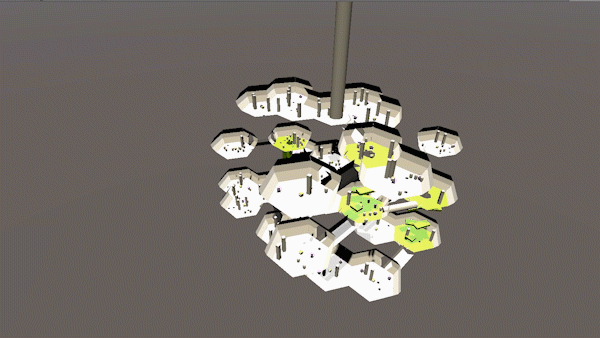

• Props instantiation.
• Rocks instantiation using Poisson-Disc Sampling algorithm.

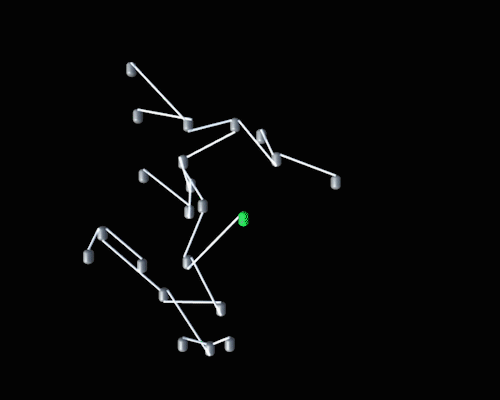

• Falling Path creation (slightly different algorithm).

3D assets by Pol Blanes & Adrià Fret.

Deep Beneath:

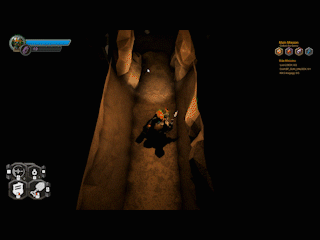

The original game that uses it is Deep Beneath.

It's open source but the code does not represent my current programming skills! GitHub (By bye SOLID!)
